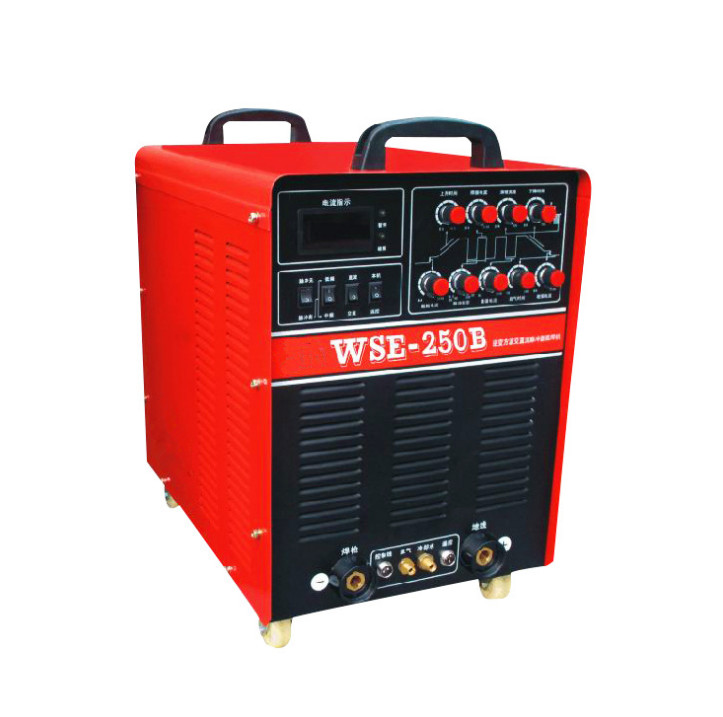

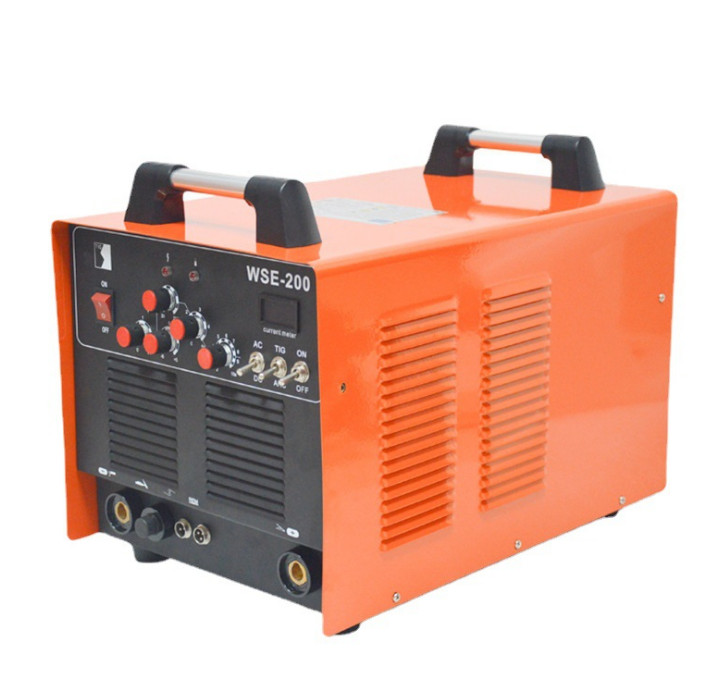

Aluminium welding machine

Description：

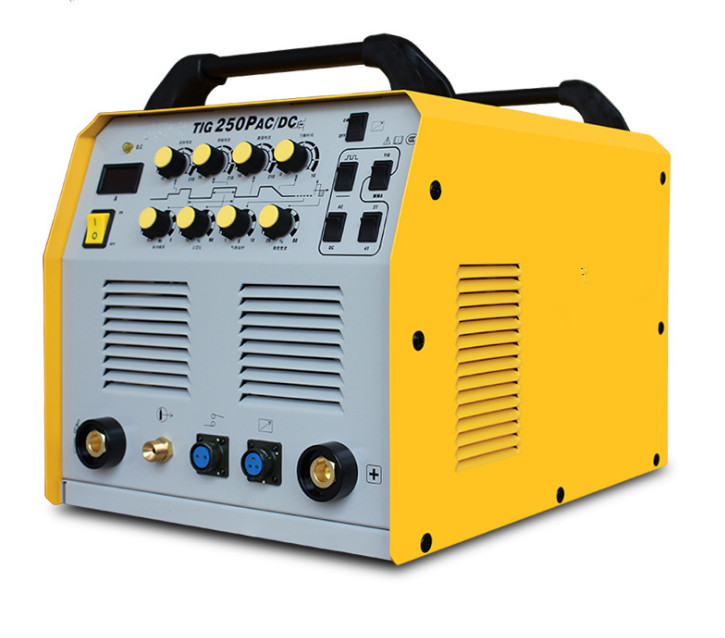

Our MOSFET inverter AC/DC TIG welder is highly cost-effective. It supports DC power source generated through one converting process and AC power source obtained through two converting processes. To be more specific, incoming 50 or 60 Hz AC power first is rectified to DC and filtered and then is fed into the inverter to be converted back to high frequency AC, and then is fed to the main power transformer, where it is transformed into low-voltage, high frequency AC, and then be filtered and rectified to DC, which could be used directly for welding. In addition, it could be fed into the inverter again to generate AC suitable for welding if required.

The TIG welding machine can generate pulsed arc periodically, thus accommodating situations in need of higher welding quality. It also supports both TIG and MMA welding methods. It can be applied for welding a variety of metals including carbon steel, stainless steel, alloy steel, copper, titanium, etc.

Feature：
